<assign>

Video version

The element is used to modify the data model.

Example:

<assign location="Var1" expr="5"/>

Attribute Details

Name	Required	Attribute Constraints	Type	Default Value	Valid Values	Description
location	true		path expression	none	Any valid location expression.	The location in the data model into which to insert the new value. See 5.9.2 Location Expressions for details.
expr	false	This attribute must not occur in an <assign> element that has children.	value expression	none	Any valid value expression An expression returning the value to be assigned. See 5.9.3 Legal Data Values and Value Expressions for details.

Children

The children of the <assign> element provide an in-line specification of the legal data value (see 5.9.3 Legal Data Values and Value Expressions) to be inserted into the data model at the specified location.

Examples:

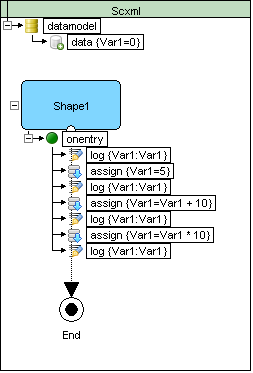

1. Assigning data by value from ‘expr’ attribute.

<scxml datamodel="lua" name="Scxml" version="1.0" xmlns="http://www.w3.org/2005/07/scxml">
	<datamodel>
		<data expr="0" id="Var1"/>
	</datamodel>
	<state id="Shape1">
		<onentry>
			<log expr="Var1" label="Var1"/>
			<assign expr="5" location="Var1"/>
			<log expr="Var1" label="Var1"/>
			<assign expr="Var1 + 10" location="Var1"/>
			<log expr="Var1" label="Var1"/>
			<assign expr="Var1 * 10" location="Var1"/>
			<log expr="Var1" label="Var1"/>
		</onentry>
		<transition target="End"/>
	</state>
	<final id="End"/>
</scxml>

Output:

[Log] Var1: 0

[Log] Var1: 5

[Log] Var1: 15

[Log] Var1: 150

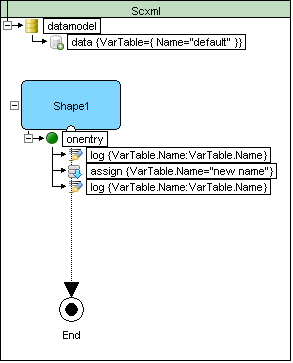

2. Multi-level location and assigning data by children element value.

<scxml datamodel="lua" name="Scxml" version="1.0" xmlns="http://www.w3.org/2005/07/scxml">
	<datamodel>
		<data expr="{ Name=&quot;default&quot; }" id="VarTable"/>
	</datamodel>
	<state id="Shape1">
		<onentry>
			<log expr="VarTable.Name" label="VarTable.Name"/>
			<assign location="VarTable.Name">&quot;new name&quot;</assign>
			<log expr="VarTable.Name" label="VarTable.Name"/>
		</onentry>
		<transition target="End"/>
	</state>
	<final id="End"/>
</scxml>

Output:

[Log] VarTable.Name: “default”

[Log] VarTable.Name: “new name”

2.1 Assign data to EcmaScript array element

Source code

```xml ```

W3C IRP tests

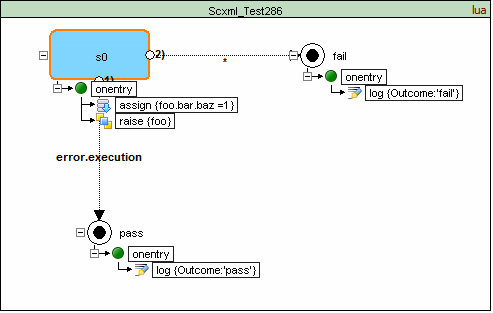

1. Test 286

If the location expression of an assign does not denote a valid location in the datamodel the processor MUST place the error error.execution in the internal event queue.

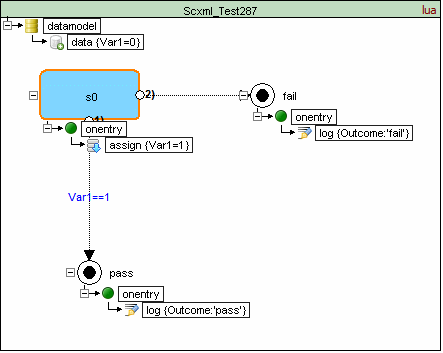

2. Test 287

If the location expression of an assign denotes a valid location in the datamodel and if the value specified by ‘expr’ is a legal value for the location specified, the processor MUST place the specified value at the specified location.

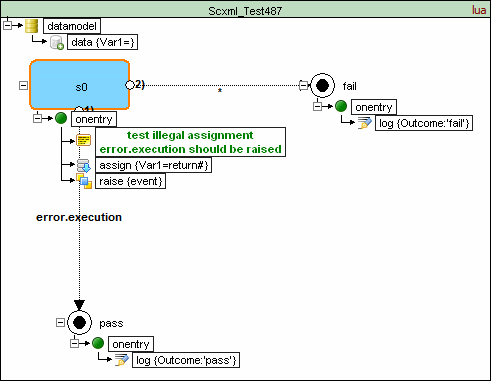

3. Test 487

If the value specified (by ‘expr’ or children) is not a legal value for the location specified, the processor MUST place the error error.execution in the internal event queue.
